Natural Refrigerants and Inverter Technology
Hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance and recovery time following door openings.
Natural Refrigerants and Inverter Technology
Hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance and recovery time following door openings.

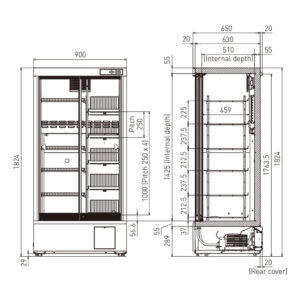

| External Dimensions (W x D x H) | 900 x 650 x 1824 mm |
|---|---|
| Internal Dimensions (W x D x H) | 800 x 510 x 1425 mm |
| Volume | 550 litres |
| Net Weight | 146 kg (MPR-S500RH-PE) /145 kg (MPR-S500RH-PA) |
| Temperature Setting Range | +2 to +14 °C |
| Temperature Control Range | +2 to +14 °C |
| Controller | Microprocessor |
| Display | Digital (White graphic OLED), 1°C (increment of 0.1) |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced air circulation |
| Defrost Method | Cyclical defrost (plus forced defrost) |
| Refrigerant | R-600a |
| Insulation Material | PUF (Rigid polyurethane foamed insulation) |
| Exterior Material | Painted steel |
| Interior Material | Painted steel |
| Outer Doors | 2 (Highly insulated double glass door with tempered glass) |
| Outer Door Lock | Y |
| Shelves | 6 coated steel wires |
| Drawers | Hard steel wire x 5 |
| Max. Load – Per Shelf/Drawer | 20 kg |
| Max. Load – Total | 220 kg |
| Access Port | 2 |
| Access Port Position | Back |
| Access Port Diameter | 30 mm |
| Casters | 4 [2 levelling feet] |
| Interior Light | LED |
| Power Failure | V-B-M-R (Optional MPR-48B2-PW required) [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm] |
| High Temperature | V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm] |
| Low Temperature | V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm] |
| Door Open | V-B-M [V = Visual Alarm, B = Buzzer Alarm, M = Message] |
| Power Supply | -PE: 220, 230, 240V/50Hz, -PA: 115V/60Hz |
| Noise Level | 42 dB [A] |
| Circular type temperature recorder | MTR-G04C-PE / MTR-G04A-PA |
|---|---|
| Continuous strip type temperature recorder | MTR-0621LH-PE / MTR-0621LH-PA |
| Temp. recorder housing | MPR-S7-PW (for MTR-G04C series) MPR-S30-PW (for MTR-0621LH series) |
| Temp. recorder Chart paper | RP-G04-PW (for MTR-G04C series) RP-06-PW (for MTR-0621LH series) |
| Ink pen for Circular type temp. recorder | PG-R-PW |
| Battery kit for power failure alarm | MPR-48B2-PW |
| Shelves & Sliding racks | MPR-31RR-PW (for lower right side) MPR-31LR-PW (for lower left side)* *Must be used in combination with MPR-31RR. |
| Communications interface | MTR-480-PW, MTR-L03-PW (only for MTR-5000 user only) |
| MPR-S500RH | The price might vary in country. Please send the inquiry form for getting quotation. |
|---|
