MDF-U5412

Catalogue No.

MDF-U5412
  • Description
  • Benefits
  • Features
  • Specifications

Supplier

PHCbi

|

Catalogue No.

MDF-U5412

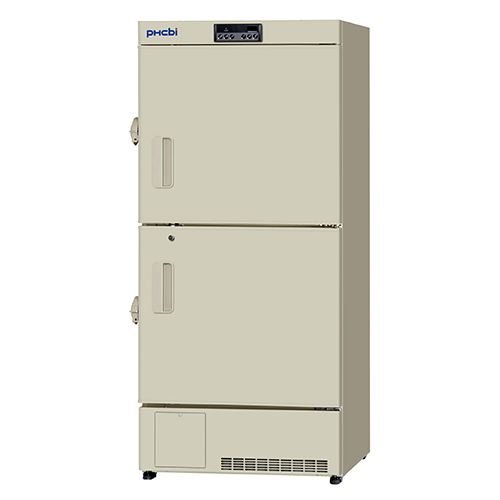

Plasma Freezer (-40 °C)

Cost-saving and environmentally friendly fresh frozen plasma storage
This MDF-U5412 Biomedical Plasma Freezer provides an ideal freezing environment for the preservation of vaccines, blood plasma, test samples and specimens. The MDF-U5412 Biomedical Plasma Freezer has a storage environment with excellent safety features, easy operability, and a lot of other features. The MDF-U5412 Biomedical Plasma Freezer offers unsurpassed reliability and functionality for short or intermediate term storage at temperatures as low as -40°C.

  • Description
  • Benefits
  • Features
  • Specifications
Description icon

Cost-saving and environmentally friendly fresh frozen plasma storage
This MDF-U5412 Biomedical Plasma Freezer provides an ideal freezing environment for the preservation of vaccines, blood plasma, test samples and specimens. The MDF-U5412 Biomedical Plasma Freezer has a storage environment with excellent safety features, easy operability, and a lot of other features. The MDF-U5412 Biomedical Plasma Freezer offers unsurpassed reliability and functionality for short or intermediate term storage at temperatures as low as -40°C.

Benefits icon
  • Built-in door latch for each of the double outer doors
  • Simple calibration via the control panel
  • Visual and audible alarm system
  • A safe, secure and easy to access unit to store your samples
  • High freezing power
  • Environment friendly
Features icon
  • Stable & Uniform Temperature Design
  • Double outer doors
  • Full-height storage containers on each shelf
  • Cooling tubes under every shelf
  • Direct cooling system for stable temperature control
  • Fine-controllable refrigeration circuit with valve
  • Large Storage Capacity
  • User Friendly Design
  • Built-in door latch for each door
  • Easy calibration through the control panel
  • Visual and Audible Alarm System
  • High & Low temperature alarm
  • Power failure alarm with non-volatile memory back up
  • Self-diagnostic system
  • Remote alarm contact
  • Re-activating buzzer, lamp and remote alarm contact (30min. after buzzer stops)
  • Standard door lock and independent padlock hasp door latches for extra security
  • Remote monitoring by Data Acquisition System (Option)
  • 1/7/30 days circular recorder (Option)
Specifications icon
External Dimensions (W x D x H) 804 x 772 x 1802 mm
Internal Dimensions (W x D x H) 658 x 607 x 1272 mm
Volume 482 litres
Net Weight 134 kg
Capacity (Aluminium Racks 2” Boxes)
Capacity (Stainless Steel Racks 2” Boxe)
Cooling Performance -40 °C
Temperature Setting Range -18 to -45 °C
Temperature Control Range -20 to -40 °C
Controller Micrprocessor
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct
Compressors 400 W
Refrigerant
Insulation Material PUF
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Styrol resin
Outer Doors/Lid
Outer Door Lock Y
Inner Doors/Lid
Shelves
Max. Load – Per Shelf U:30/L:30 kg
Max. load – Total 100 kg
Vacuum Release Port
Access Port
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter
Door Open
Power Supply Local
Frequency Local
Noise Level 42 dB [A]
