Cost-saving and environmentally friendly sample storage within an optimal footprint

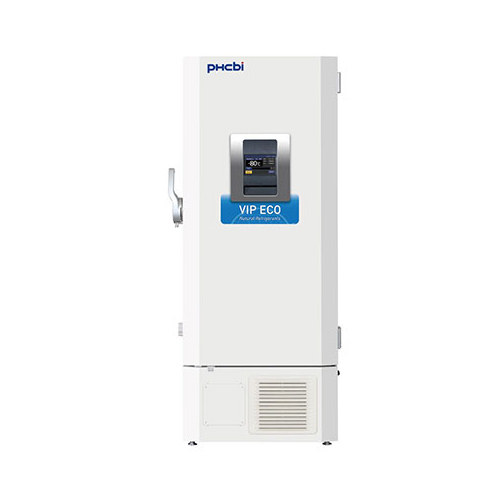

The MDF-DU502VH VIP ECO ultra-low freezer with natural refrigerants minimises energy consumption, reduces environmental impact and saves money. Innovative technology and Class IIa medical device certification provide secure storage of valuable research and clinical samples.
Cost-saving and environmentally friendly sample storage within an optimal footprint
The MDF-DU502VH VIP ECO ultra-low freezer with natural refrigerants minimises energy consumption, reduces environmental impact and saves money. Innovative technology and Class IIa medical device certification provide secure storage of valuable research and clinical samples.
| External Dimensions (W x D x H) | 790 x 882 x 1993 mm |
|---|---|
| Internal Dimensions (W x D x H) | 630 x 600 x 1400 mm |
| Volume | 528 litres |
| Net Weight | 246 kg |
| Capacity (2” Boxes in Stainless Steel Racks) | 384 (2” boxes) |
| – | – |
| Cooling Performance | -86 to -40 °C |
| Temperature Setting Range | -90 to -40 °C |
| Temperature Control Range | -86 to -40 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LCD Touch Screen |
| Temperature Sensor | Pt-1000 |
| Refrigeration System | Cascade |
| Compressors | 2 x 750 W |
| Refrigerant | |
| Insulation Material | PUF / VIP Plus |
| Insulation Thickness | 80 mm |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 |
| Shelves | |
| Max. Load – Per Shelf | 50 kg |
| Max. Load – Total | 415 kg |
| Vacuum Release Port | 2 (1 automatic, 1 manual) |
| Access Port | 3 |
| Access Port Position | back x 1, bottom x 2 |
| Access Port Diameter | 17 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | V-B |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 52 dB [A] |
