Next generation “Twin Guard” Dual Cooling system with reduced power consumption.

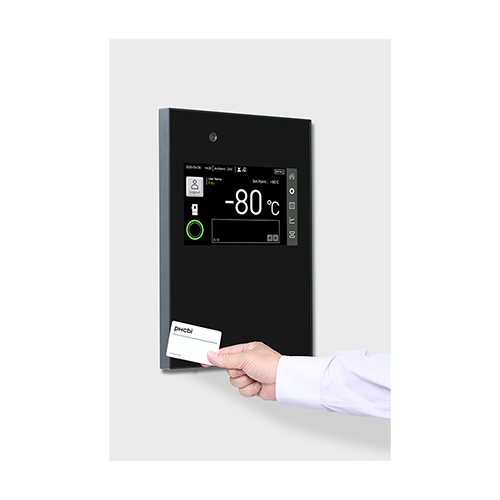

The next generation Twin Guard Eco Ultra Low Temperature freezers use natural refrigerants and inverter controlled compressors, reducing energy usage, with enhanced access control via an electronic lock with facial recognition (optional) to provide the highest level of protecting for your valuable samples.
Next generation “Twin Guard” Dual Cooling system with reduced power consumption.
The next generation Twin Guard Eco Ultra Low Temperature freezers use natural refrigerants and inverter controlled compressors, reducing energy usage, with enhanced access control via an electronic lock with facial recognition (optional) to provide the highest level of protecting for your valuable samples.

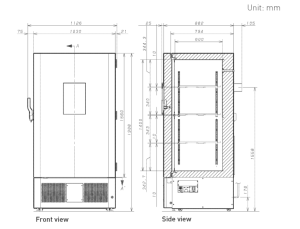

| External Dimensions (W x D x H) | 1030 x 882 x 1988 mm |
|---|---|
| Internal Dimensions (W x D x H) | 870 x 600 x 1400 mm |
| Volume | 729 litres |
| Net Weight | 296 kg |
| Capacity (2″ Boxes in Stainless Steel Racks) | 576 (2″boxes) |
| Cooling Performance | -86 °C |
| Temperature Setting Range | -40 to -90 °C |
| Temperature Control Range | -40 to -86 °C |
| Controller | Microcomputer, non-volatile memory |
| Display | LCD Touch Screen |
| Temperature Sensor | Pt 1,000 Ω |
| Refrigeration System | Independent Dual-Cooling |
| Compressors | 2 x 920 W |
| Refrigerant | HC mixed refrigerant (R-600/R-170/R-50) |
| Insulation Material | PUF / VIP Plus |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 |
| Shelves | 3 (stainless steel) |
| Max. Load – Per Shelf | 50 kg |
| Access Port | 3 |
| Access Port Position | Black x 1, Bottom x 2 |
| Access Port Diameter | 17 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | Filterless design |
| Door Open | V-B |
| Power Supply | 220/230/240 V, 50 Hz220/230 V, 60 Hz |
| Noise Level | 52 dB [A] |
| Liquid CO2 back-up | MDF-UB9-PW |
|---|---|
| Temperature recorders | |
| – Circular type | MTR-G85C-PE 6) |
| – Chart paper | RP-G85-PW / Ink pen: PG-R-PW |
| – Continuous strip type | MTR-85H-PW 6) |
| – Chart paper | RP-G85-PW / Ink pen: DF-38FP-PW |
| – Recorder housing | MDF-S3085-PW |
