All-round performance

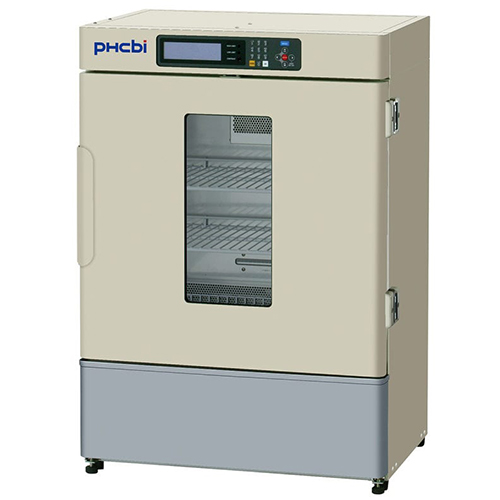

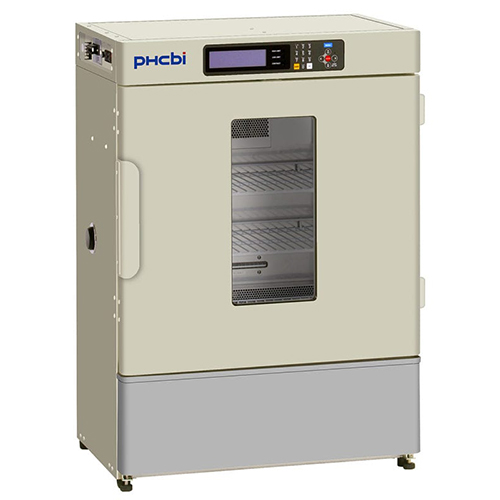

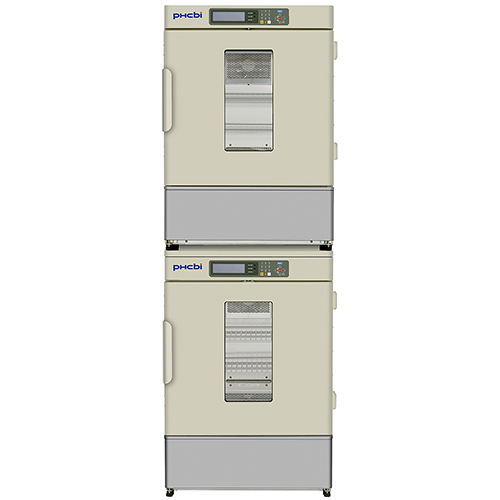

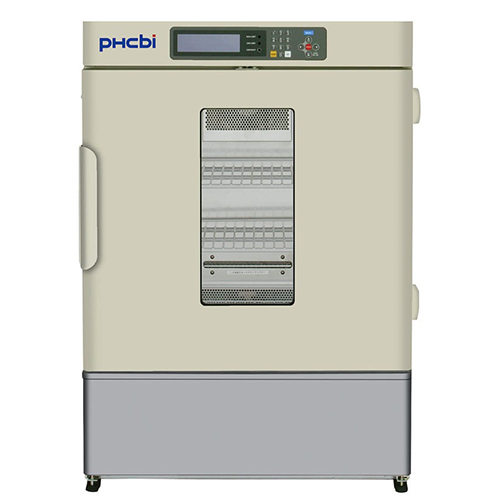

The MIR-154 Cooled Incubator is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperatures and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled. The MIR-154 has a capacity of 123 liters.
All-round performance
The MIR-154 Cooled Incubator is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperatures and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled. The MIR-154 has a capacity of 123 liters.
| External Dimensions (W x D x H) | 700 x 580 x 1018 mm |
|---|---|
| Internal Dimensions (W x D x H) | 620 x 368 x 555 mm |
| Volume | 123 litres |
| Net Weight | 78 kg |
| Temperature Control Range | -10°C ~ +60°C (AT +5°C ~ +35°C, no load) |
| Temperature Fluctuation | ±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load) |
| Temperature Uniformity | ±0.5 (SV 37°C, Ambient Temp 20°C, No load) |
| Controller | Microprocessor PID System (ON-OFF control when compressor operates) |
| Display | LCD |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced air circulation |
| Compressors | 150 W |
| Refrigerant | |
| Insulation Material | PUF |
| Insulation Thickness | 40 mm |
| Exterior Material | Painted steel |
| Interior Material | SS SUS-304 |
| Outer Doors | 1 |
| Outer Door Lock | MIR-LP option |
| Reversible Door | Y |
| Inner Doors | N |
| Shelves | 3 |
| Max. Load Per Shelf | 20 kg |
| Max. Total Load | 61 kg |
| Access Port | 1 |
| Access Port Position | left side |
| Access Port Diameter | 40 |
| Interior Fluorescent Lamp | 1, 15 W, with MIR-L15-PE *1 option |
| Power Failure | – |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 41 dB |
