Personal-size compact CO2 Incubator
A stackable structure allows the main body to be stacked in two or three layers, depending on the installation environment and culture conditions.
When arranged your incubators in triple stackable configurations, this unit meets GLP requirements by helping to avoid patient-to-patient cross contamination in individualized patient-specific clinical incubation applications.

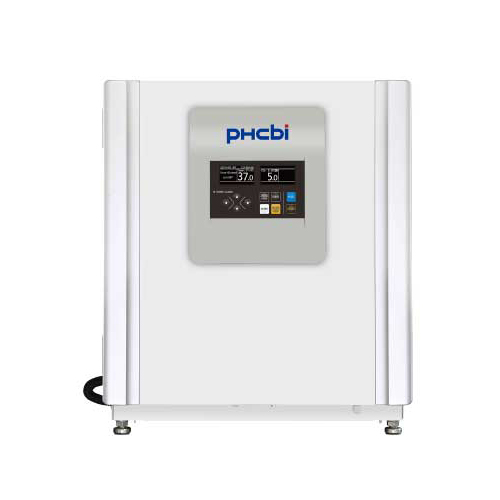

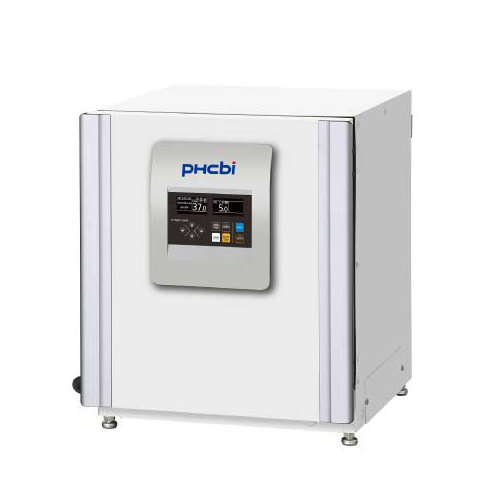

Personal-size compact CO2 Incubator
A stackable structure allows the main body to be stacked in two or three layers, depending on the installation environment and culture conditions.
When arranged your incubators in triple stackable configurations, this unit meets GLP requirements by helping to avoid patient-to-patient cross contamination in individualized patient-specific clinical incubation applications.

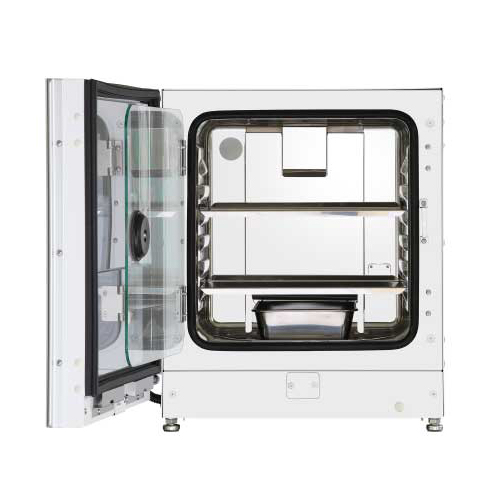

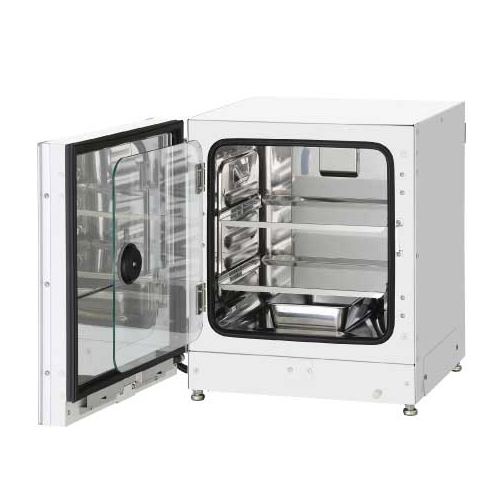

Tray catches are integral parts of the chamber, opening up more space for trays by reducing 70 % of the parts to accommodate more culture containers.
(comparison with MCO-5AC/5M)

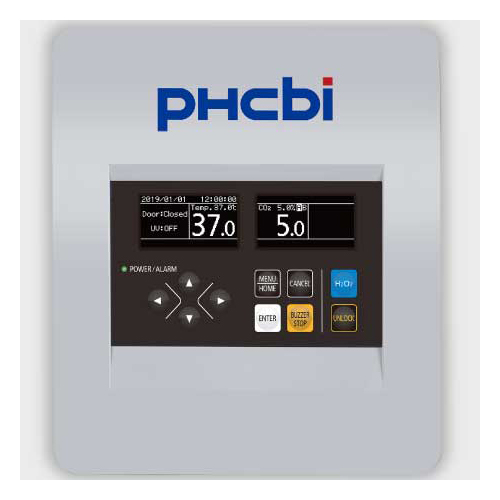

A WVGA Color LCD touch panel delivers full control over different protocols. Auto-lock can be set with the optional electric door lock MCO-170EL. The access can be limited, controlled, and traced by setting User-IDs and Passwords.
*MCO-50AIC
The automatic door lock (electric lock) can be set by the optional electric lock (MCO-170EL). The operation for lock can be controlled by individual user ID and password.
The high-speed decontamination system using hydrogen peroxide (H2O2), which is also widely used for the protocol of regenerative medicine, can complete decontamination in about two and a half hours, improving the lab work efficiency of researchers and ensuring decontamination of the cell culture incubator inside.
| External Dimensions (W x D x H) | 480 x 550 x 585 mm |
|---|---|
| Internal Dimensions (W x D x H) | 370 x 363 x 385 mm |
| Volume | 50 liters |
| Net Weight | 45 kg |
| Temperature Control Range & Fluctuation | AT +5 ~ +50, ±0.1 °C |
| Temperature Uniformity | ±0.25 °C |
| CO2 Control Range & Fluctuation | 0 ~ 20, ±0.15 % |
| O2 Control Range & Fluctuation | – |
| Humidity Level & Fluctuation | 95, ±5 %RH |
| Temperature Sensor | Thermistor |
| CO2 Sensor | Dual IR |
| O2 Sensor | – |
| Display | Digital (white graphic OLED) readable to 0.1 increments |
| Exterior Material | Painted Steel (rear cover not painted) |
| Interior Material | Stainless Steel Copper-Enriched Alloy |
| Insulation Material | Styrene AcryloNitrile copolymer |
| Heating Method | Direct Heat & Air Jacket System |
| Outer Doors | 1 (Field reversible door) |
| Inner Doors | 1 (tempered glass) |
| Shelves | 2 x stainless steel copper-enriched alloy |
| Shelf Dimensions (W x D x H) | 353 x 308 x 12 mm |
| Max. Load Per Shelf | 7 kg |
| Access Port | 1 |
| Access Port Position | On The Back Side |
| Access Port Diameter | 30 |
| Power Failure | R |
| Out of Temperature Setting | V-B-R |
| High Temperature | V-B-R |
| Out of CO2 Setting | V-B-R |
| Out of O2 Setting | – |
| Door Open | V-B |
| Power Supply | 220 |
| Frequency | 60 |
| Noise Level | 29 dB |
