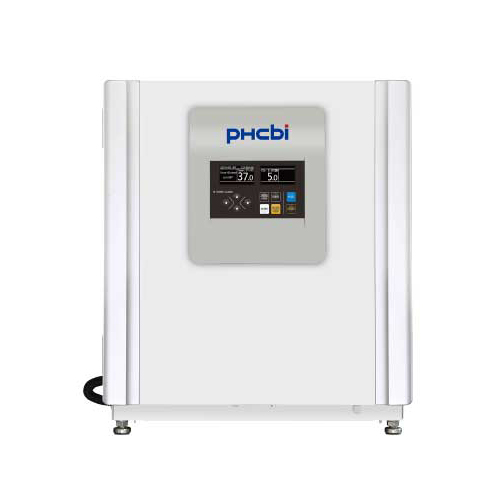

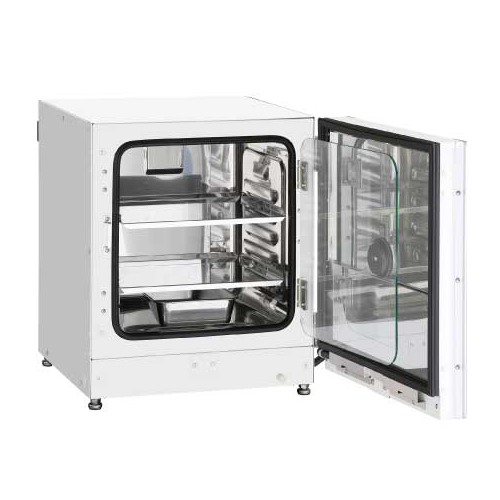

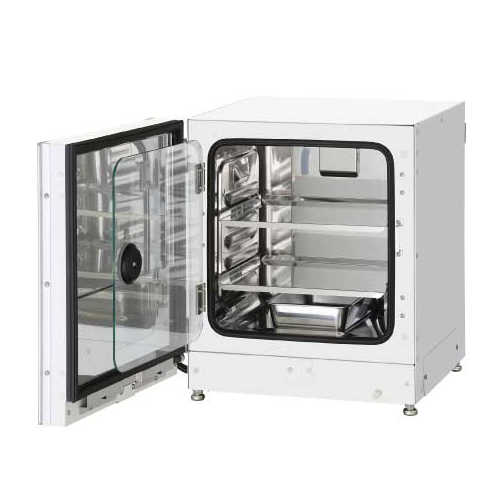

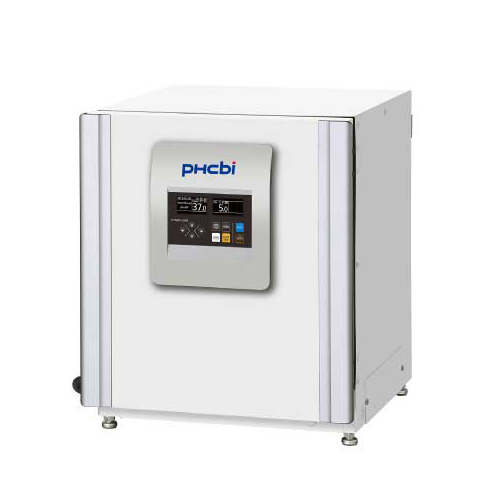

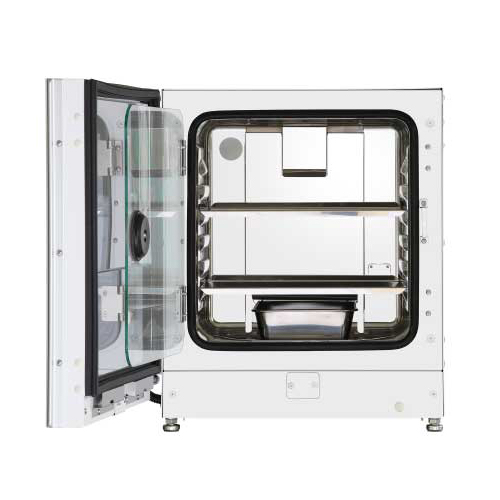

Personal-size compact Multigas Incubator
A stackable structure allows the main body to be stacked in two or three layers, depending on the installation environment and culture conditions.
When arranged your incubators in triple stackable configurations, this unit meets GLP requirements by helping to avoid patient-to-patient cross contamination in individualized patient-specific clinical incubation applications.
Personal-size compact Multigas Incubator
A stackable structure allows the main body to be stacked in two or three layers, depending on the installation environment and culture conditions.
When arranged your incubators in triple stackable configurations, this unit meets GLP requirements by helping to avoid patient-to-patient cross contamination in individualized patient-specific clinical incubation applications.
| External Dimensions (W x D x H) | 480 x 550 x 585 mm |
|---|---|
| Internal Dimensions (W x D x H) | 370 x 363 x 385 mm |
| Volume | 50 liters |
| Net Weight | 46 kg |
| Temperature Control Range & Fluctuation | AT +5 ~ +50, ±0.1 °C |
| Temperature Uniformity | ±0.25 °C |
| CO2 Control Range & Fluctuation | 0 ~ 20, ±0.15 % |
| O2 Control Range & Fluctuation | 1 -18 and 22 – 80 |
| Humidity Level & Fluctuation | 95, ±5 %RH |
| Temperature Sensor | Thermistor |
| CO2 Sensor | Dual IR / Stabilised Zirconia |
| O2 Sensor | Stabilized Zirconia Sensor |

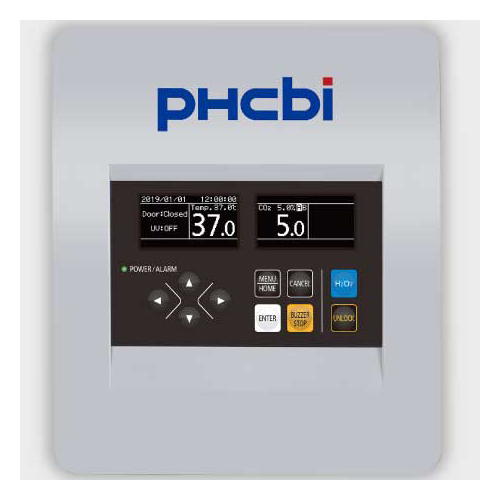

| Display | Digital (white graphic OLED) readable to 0.1 increments |
| Exterior Material | Painted Steel (rear cover not painted) |
| Interior Material | Stainless Steel Copper-Enriched Alloy |
| Insulation Material | Styrene AcryloNitrile copolymer |
| Heating Method | Direct Heat & Air Jacket System |
| Outer Doors | 1 (Field reversible door) |
| Inner Doors | 1 (tempered glass) |
| Shelves | 2 x stainless steel copper-enriched alloy |
| Shelf Dimensions (W x D x H) | 353 x 308 x 12 mm |
| Max. Load Per Shelf | 7 kg |
| Access Port | 1 |
| Access Port Position | On The Back Side |
| Access Port Diameter | 30 |
| Power Failure | R |
| Out of Temperature Setting | V-B-R |
| High Temperature | V-B-R |
| Out of CO2 Setting | V-B-R |
| Out of O2 Setting | V-B-R |
| Door Open | V-B |
| Power Supply | 220 |
| Frequency | 60 |
| Noise Level | 29 dB |
