Bioreactor

Jumpstart your bioprocess R&D with this compact and easy-to-use bioreactor

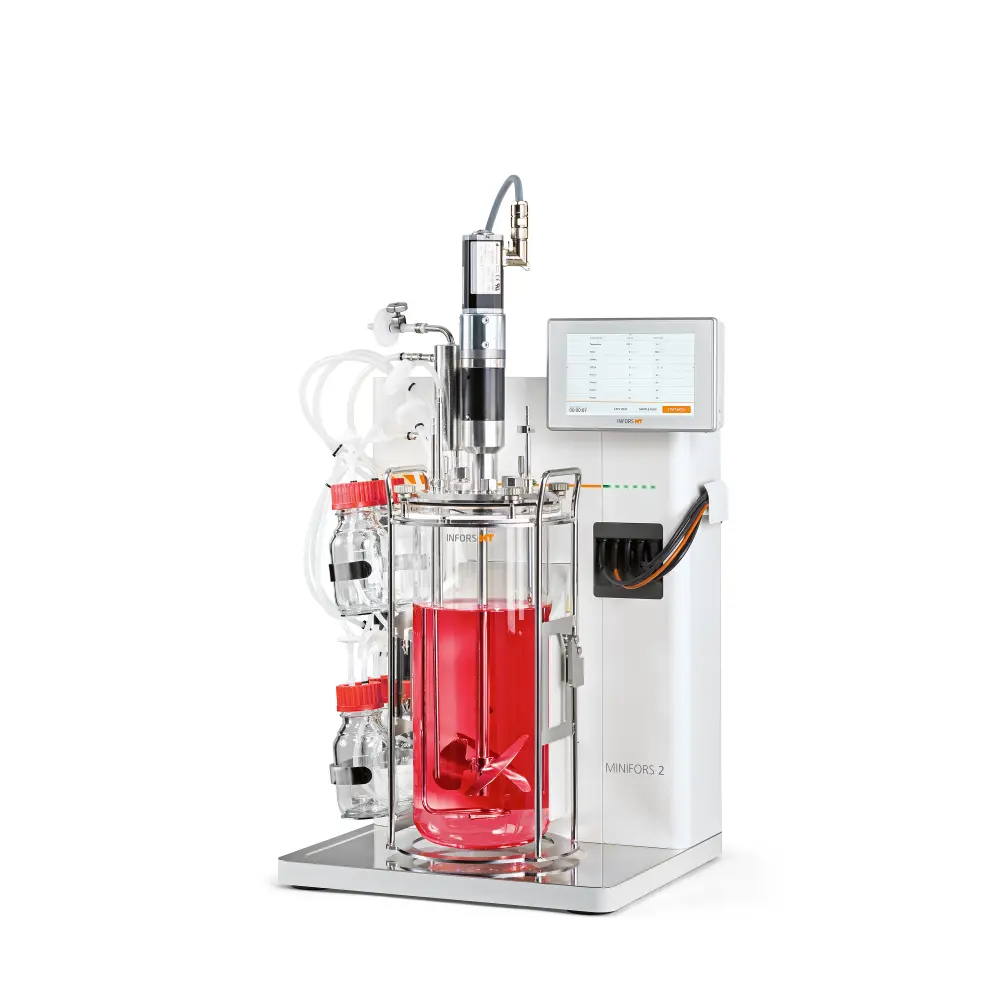

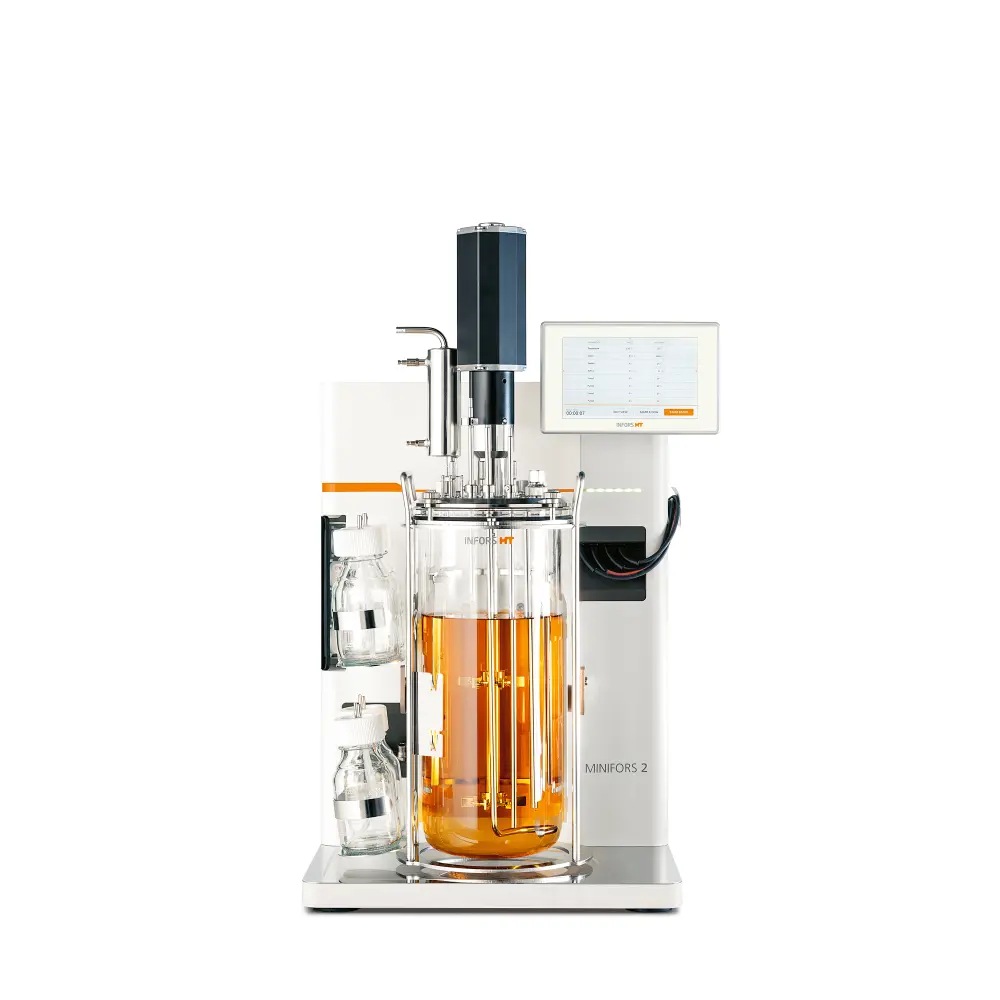

Easily initiate and manage cell culture or microbial experiments from research and development through process development with this plug-and-play Minifors 2 bench-top bioreactor system.



Compact and easy-to-use bioreactor
Easily initiate and manage cell culture or microbial experiments from research and development through process development with this plug-and-play Minifors 2 bench-top bioreactor system.

  • Description
  • Features
  • Key Features
Description icon

Jumpstart your bioprocess R&D with this compact and easy-to-use bioreactor
Easily initiate and manage cell culture or microbial experiments from research and development through process development with this plug-and-play Minifors 2 bench-top bioreactor system.



Compact and easy-to-use bioreactor
Easily initiate and manage cell culture or microbial experiments from research and development through process development with this plug-and-play Minifors 2 bench-top bioreactor system.

Features icon
Culture vessels
  • Working volumes ranging between 0.5 and 10 L
  • Can be configured according to individual needs thanks to a selection of different stirrers, spargers and specialized accessories
  • Up to 14 ports for sensors (antifoam, optical density, pH, pO2, redox, conductivity, live cell density, etc.)
  • No welded lid components—ideal for GMP applications
High-performance pumps
  • Basic setup includes four precision pumps per culture vessel (option of one more)
  • Autoclavable pump heads
  • Gravimetric feeding (with external scale)
  • Profile-based pump-speed control with eve®
Gassing
  • Customer-specific gassing with up to 5 gas lines, either via a sparger or in the headspace
  • Feed via rotameter or mass-flow regulator
  • Cascades may be configured in serial or in parallel for controlling the pO2 via the stirrer speed, gassing rate, gas composition, etc.
  • pH control with acid and CO2
Sensors
  • Customers may choose from digital (Modbus) or analog sensors.
  • Product calibration of the pH sensor for reliable measurements during long-running bioprocesses
  • If required, additional sensors and actuators can be connected.
12″ Touchscreen Controller
  • Touchscreen with integrated OPC server
  • Reliable measurement and setting of the bioprocess parameters and communication with eve®
  • Parallel management and control of up to six devices
  • Up to 24 selectable parameters, such as temperature, stirring speed, pH, pO2, anti-foaming agent, feed
eve® Bioprocess Platform Software
  • Planning, controlling and analysing bioprocesses
  • Integrated workflows, devices and bioprocess knowledge
  • Integrates bioreactors and analytical instruments, regardless of the manufacturer
  • Web-based project organisation
  • Communication using the latest OPC UA (Minifors 2) or OPC XML-DA standard (Multifors 2, Labfors 5, Techfors-S, Techfors)
  • Synchronisation of process-related events such as sampling or inoculation

Technical Details

Compare

Technical Details

Key Features icon

Quickly begin your experiments
Get your experiments started quickly with minimal experience thanks to the preconfigured delivery and intuitive controls of this bench-top bioreactor. Simply connect the device, mount the vessel, connect pumps and sensors, and begin your work quickly.

Compact and easy to handle
Requiring very little space on the lab bench, this compact bench-top bioreactor is designed for optimal handling and operation. All components are easily accessible and allow for stress-free transport within the vessel holder, to and from autoclave, fitting within smaller autoclaves with only 30 cm inner diameter.

Easily automate your data management
Save time and resources by automating your data management with eve®, a web-based bioprocess platform software. Accessing your data from anywhere so you can collaborate with colleagues at different facilities, leading to faster research results.
Product specifications
Vessel sizes (and working volumes): 1.5 L (0.3 – 1 L), 3 L (0.6 – 2 L), and 6 L (1.1 – 4 L)
Base unit dimensions (Width including operating panel x Depth including hose connection): 455 x 415 mm / 17.9 x 16.3 in.
4 high-performance pumps with configurable operating modes: digital (fixed-speed) or analog (variable speed)
High end gassing with 2 microbial or 5 cell culture Mass Flow Controllers (MFCs)
