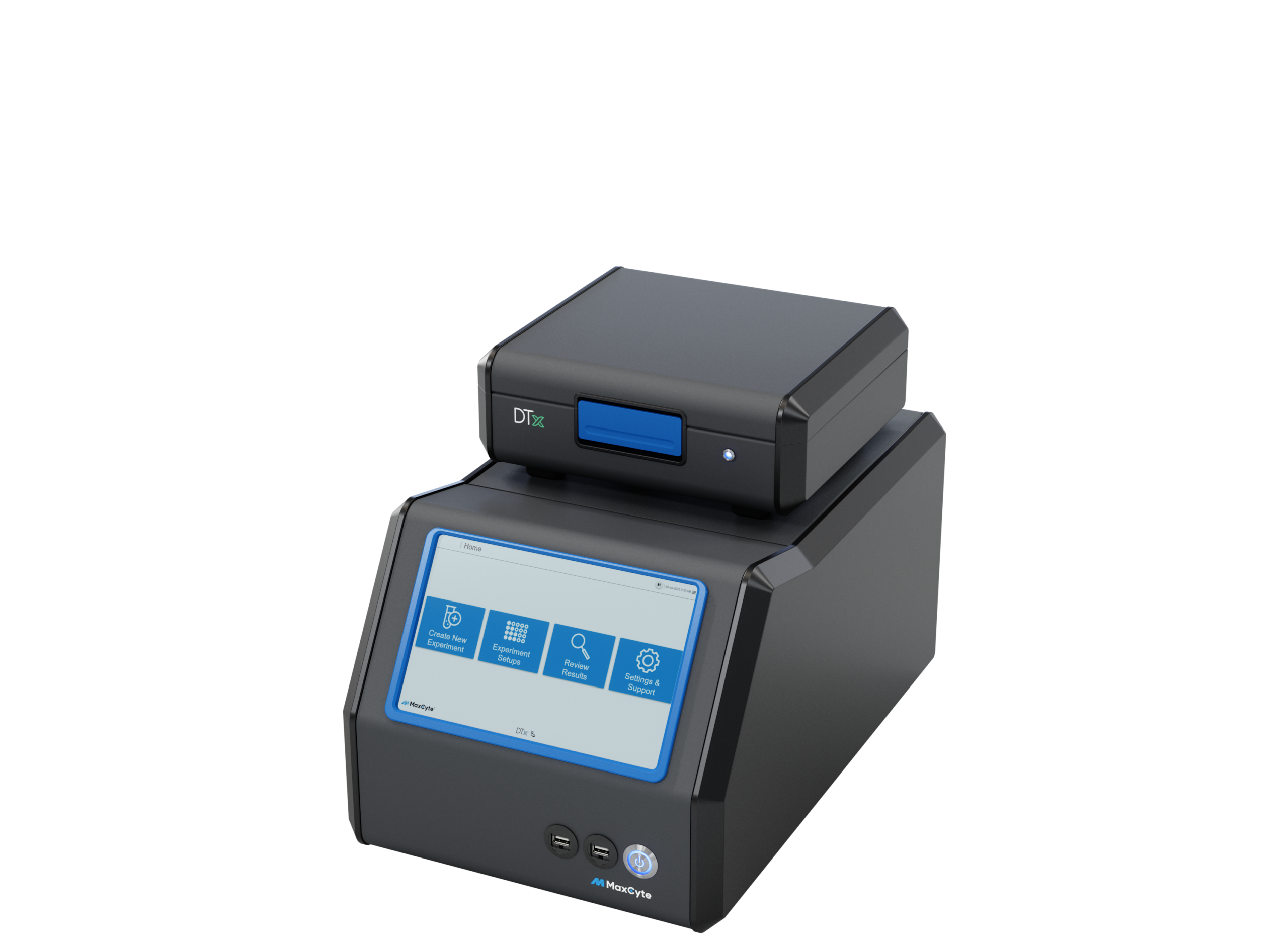

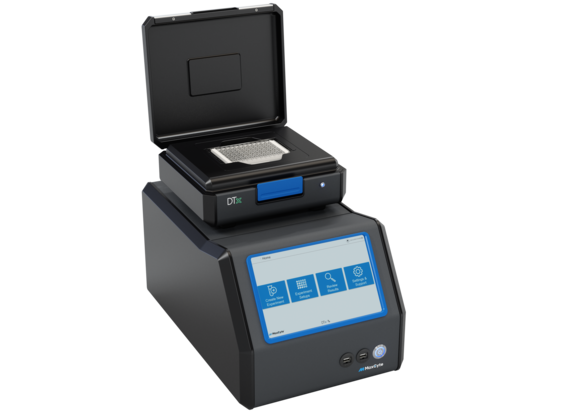

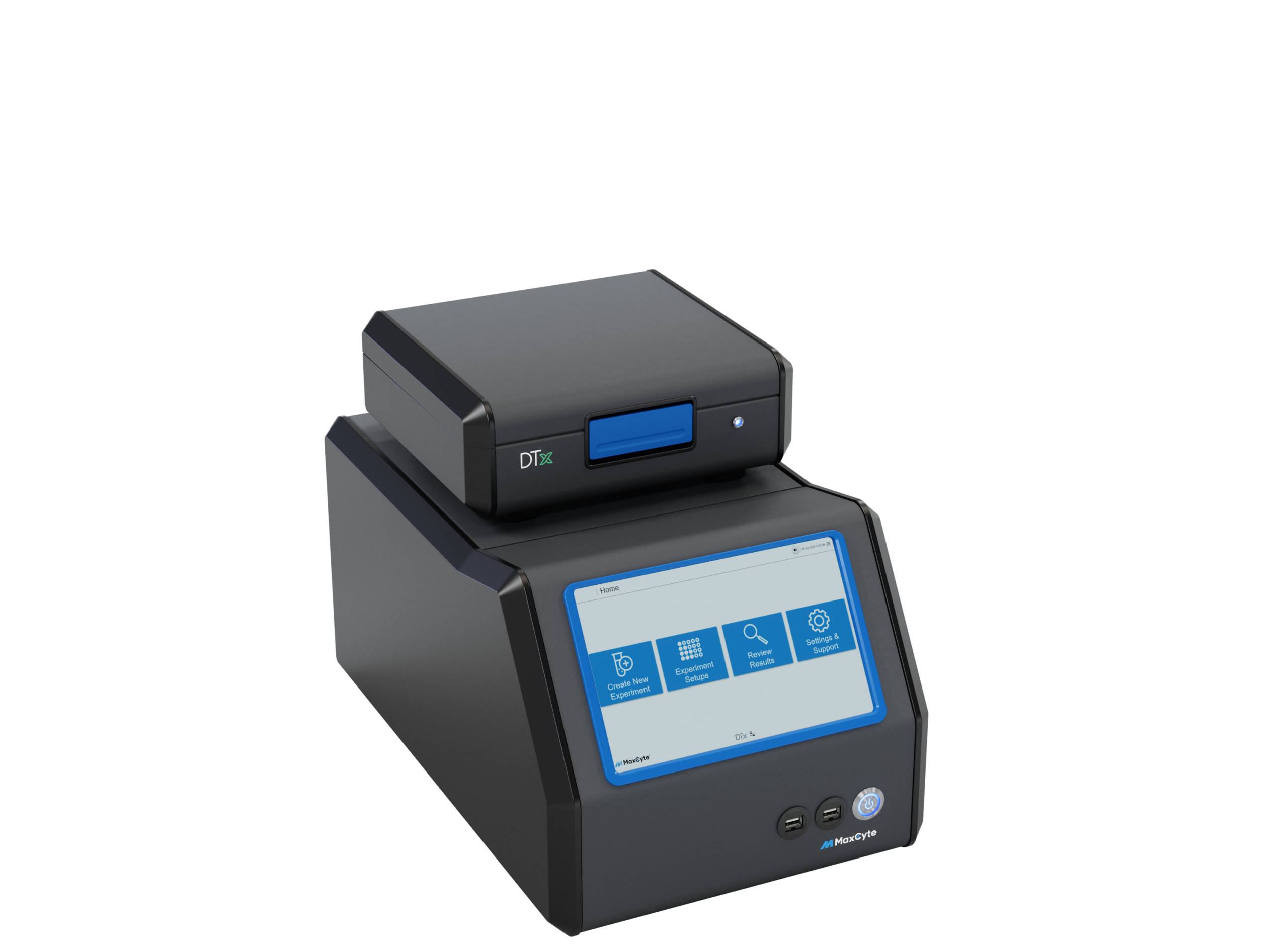

ExPERT DTx™

Description

Overview

The ExPERT DTx is a modular system with 4 components:

Electroporation Module I generates the energy for electroporation
DTx Processing Assembly Module (PAM) accommodates and delivers the charge to the Processing Assembly (PA)
Electroporation Module Software – controls and monitors the DTx PAM
DTx Designer software enables users to design an experiment remotely and upload it to the Electroporation Module I
Integrated 10” touch-screen – Easily operate with just the touch of a finger
Network capable – Generate and save run reports automatically onto a shared local drive
Precision protocol control – intuitive slider adjustment to fine-tune electroporation
Independent strip control – maximizes experimental flexibility and minimizes waste
Compact footprint – a modern aesthetic for any high-tech lab space

Specifications

Item	Specifications
DTx Electroporation Module Dimensions	19.6” (498 mm) X 12.6” (320 mm) X 10.7” (273 mm)
DTx Processing Assembly Module Dimensions	9.9” (252 mm) X 11.1” (282 mm) X 4.4” (111 mm)
DTx Instrument Weight (EP Module + PA Module)	47 lbs (21 kg)
DTx Input Power	100-240 VAC, 50-60 Hz, 240 W
Fuse Requirements	2 X 4 A Slow Blow, 250 V, 5 X 20 mm
Operating Humidity	80% max (non-condensing)
Operating Temperature	59°F – 86°F \| 15°C – 30°C
Storage Temperature	32°F – 113°F \| 0°C – 45°C
Modes of Operation	Static
Process Volumes	20 μL – 50 μL
Ports Available	3 USB / 1 Ethernet
